Select your finish

Our range of products can be produced in a variety of finishes depending on application. Any colour is possible, so please talk to our team to find out more.

  • Metal

    • Satin Stainless Steel (SSS)

      Satin Stainless Steel

    • Polished Stainless Steel (PSS)

      Polished Stainless Steel

    • Polished Brass (PBR)

      Polished Brass

    • Satin Brushed Brass (SBR)

      Satin Brushed Brass

    • Antique Brass (ABR)

      Antique Brass

    • Polished Nickel Plate (PNP)

      Polished Nickel Plate

    • Imitation Bronze (IBU)

      Imitation Bronze

    • Dark Bronze (DBZ)

      Dark Bronze

    • PVD Black (PVDBLK)

      PVD Black

  • Colour

    • Flat Matt Black (FMB)

      Flat Matt Black

    • Black (RAL9005)

      Black

    • White (RAL9010)

      White

    • Bright Red Orange (RAL2008)

      Bright Red Orange

    • Pastel Blue (RAL5024)

      Pastel Blue

    • Blue Green (RAL6004)

      Blue Green

    • Luminous Yellow (RAL1026)

      Luminous Yellow

Get a Quote

115-500-100-2000-SQ-CE-SSS

Get a Quote

Inspiration

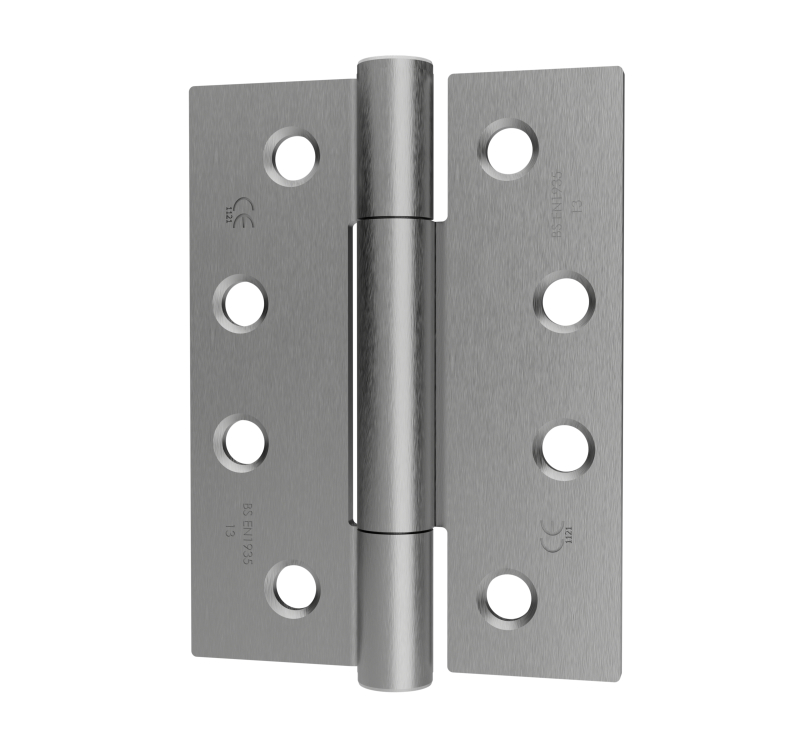

115.500.100.2000.SQ.CE.SSS

Satin Stainless Steel

100.2000

Features and Benefits

  • 3V 101 x 76 x 3mm concealed bearing square corner template drilled maintenance free hinge to suit maximum adjusted door weight 120kg
  • High quality British engineering. Precise finished steel or stainless steel substrate to allow for surface finishing requirements
  • These hinges are unique in their construction and performance. The hinges are designed for longevity and as a ‘fit and forget’ solution; and because they do not wear, will not fail and require no maintenance.
  • Variant finishes are available upon request
  • CE marked, BS EN1935 4-7-6-1-1-4-0-13 & Certifire for use in FD/E/EI 30/60 ITT timber door sets with intumescent hinge pads

Dimensions

Technical Drawing

Families

Sustainability

  • Our belief with all our specifications is to specify and supply products that are engineered to perform over the lifetime of any building without failure. By focusing on the life cycle of the materials and products used we can reduce unnecessary wastage, thus doing everything possible to reduce our impact on the environment.
